Zhono offers tips to clear error messages

In this latest article, Zhono is exploring some common prompts HP printers and offers solutions.

Zhono looks at solutions for clearing the prompts on some HP printers:



Prompt Message: Cartridge Problem

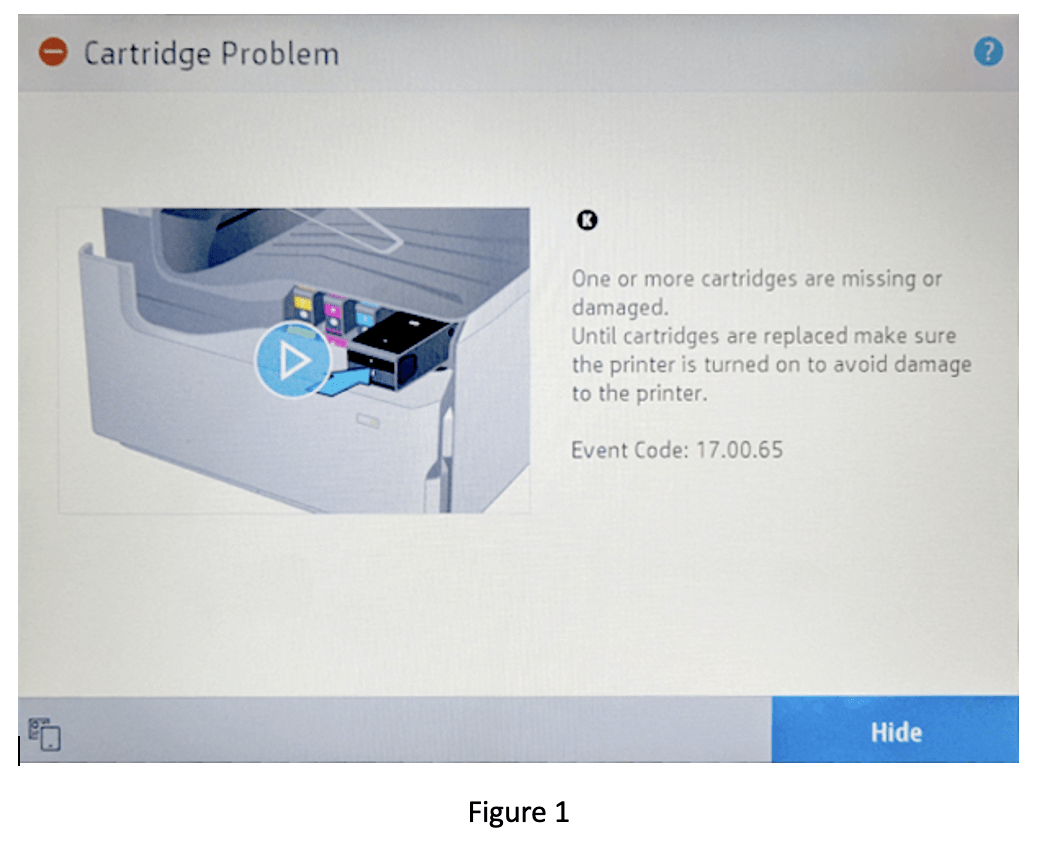

Prompt Text: “One or more cartridges are missing or damaged. Until cartridge are replaced make sure the printer is turned on to avoid damage to the printer. Event Code: 17.00.65” (Figure 1)

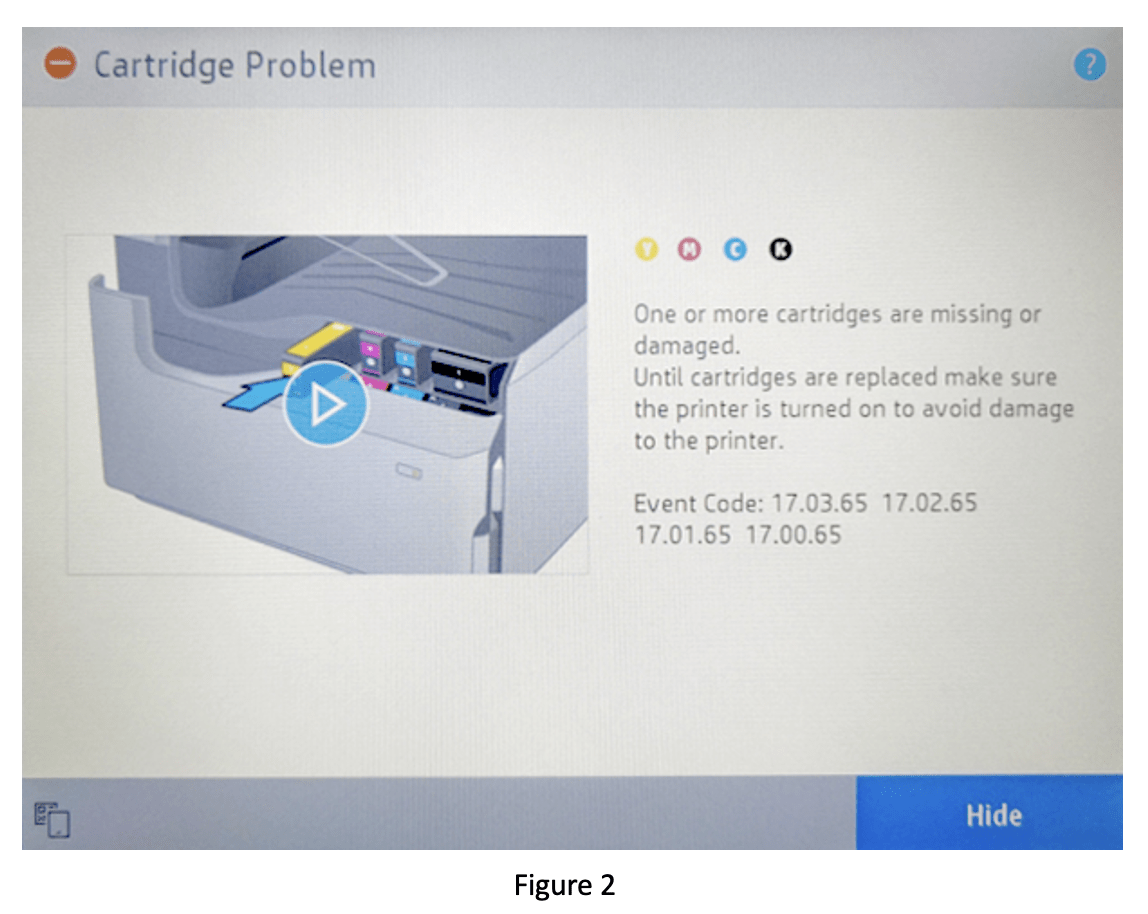

Or?“Event Code: 17.03.65 17.02.65 17.01.65 17.00.65” (Figure 2)

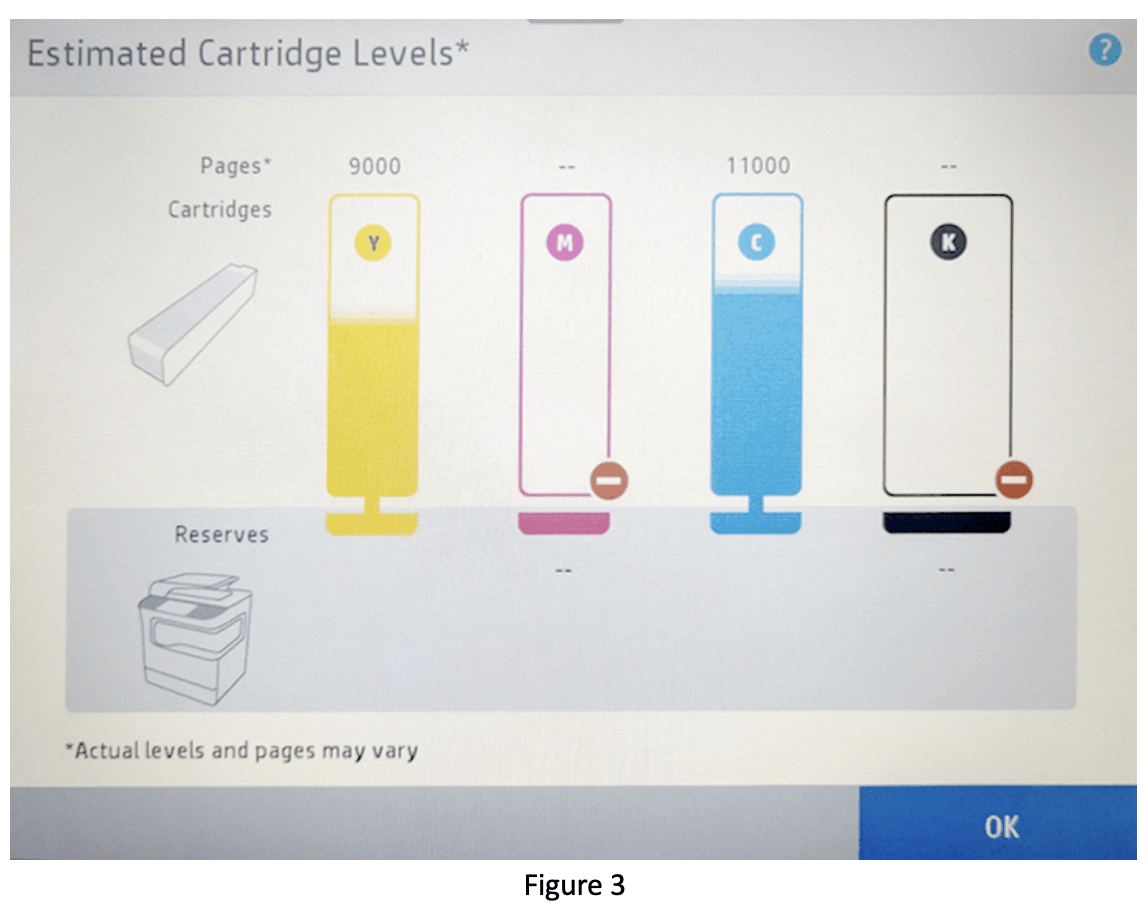

Or, “Actual levels and pages may vary” will appear on the Estimated Cartridge Levels interface (Figure 3).

Solution

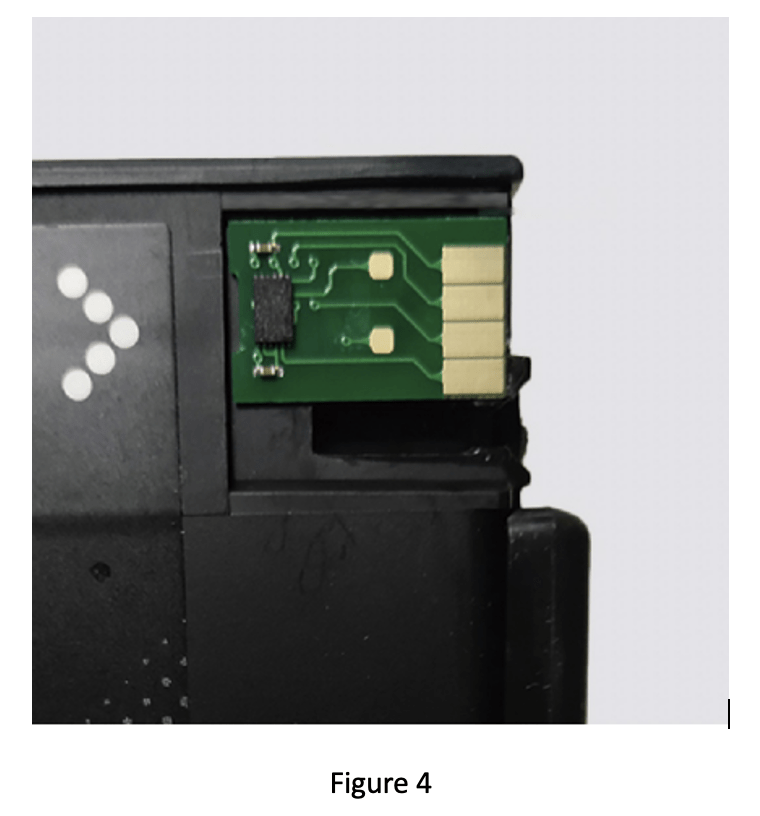

1. Check to see if the chip is installed correctly. Make sure the chip is inserted into the upper left corner as shown in Figure 4 below.

2. Check the chip. If the chip is damaged or is for a different model, replace the chip.
3. Check to see if the chips are inserted to the corresponding cartridges by matching colours. If a chip is inserted into an incorrect color cartridge, you will receive a prompt.



Prompt Message: Incompatible Cartridges

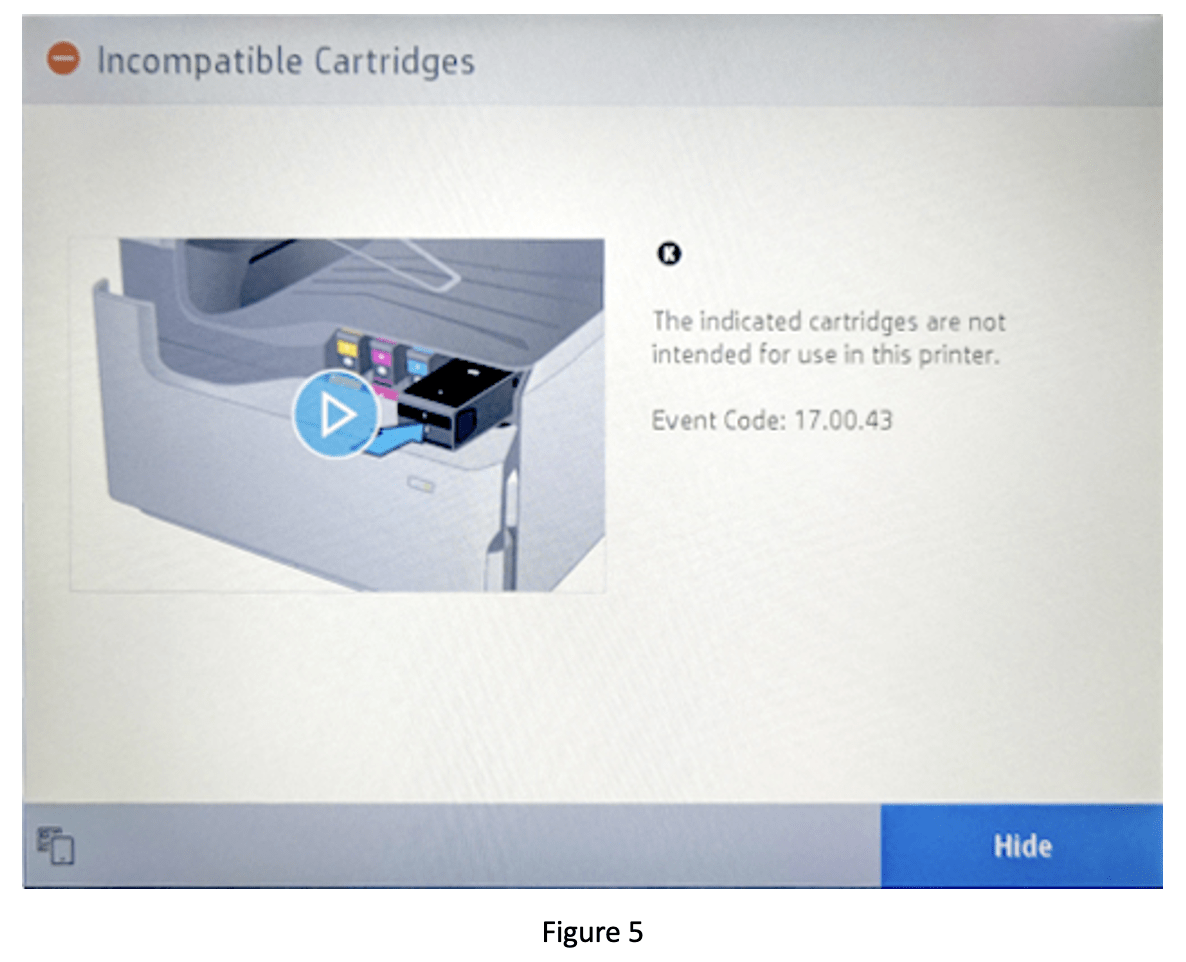

Prompt Text: “The indicated cartridges are not intended for use in this printer. Event Code: 17.00.43” (Figure 5)



Solution

Check to see if the model of chip matches the corresponding cartridges. The prompt “Incompatible Cartridges” will appear if the chip model is incorrect.



Prompt Message: Cartridge Failure / Cartridge Problem (The prompts vary for different printers.?

Prompt Text: “17.00.00 Black Cartridge failure”

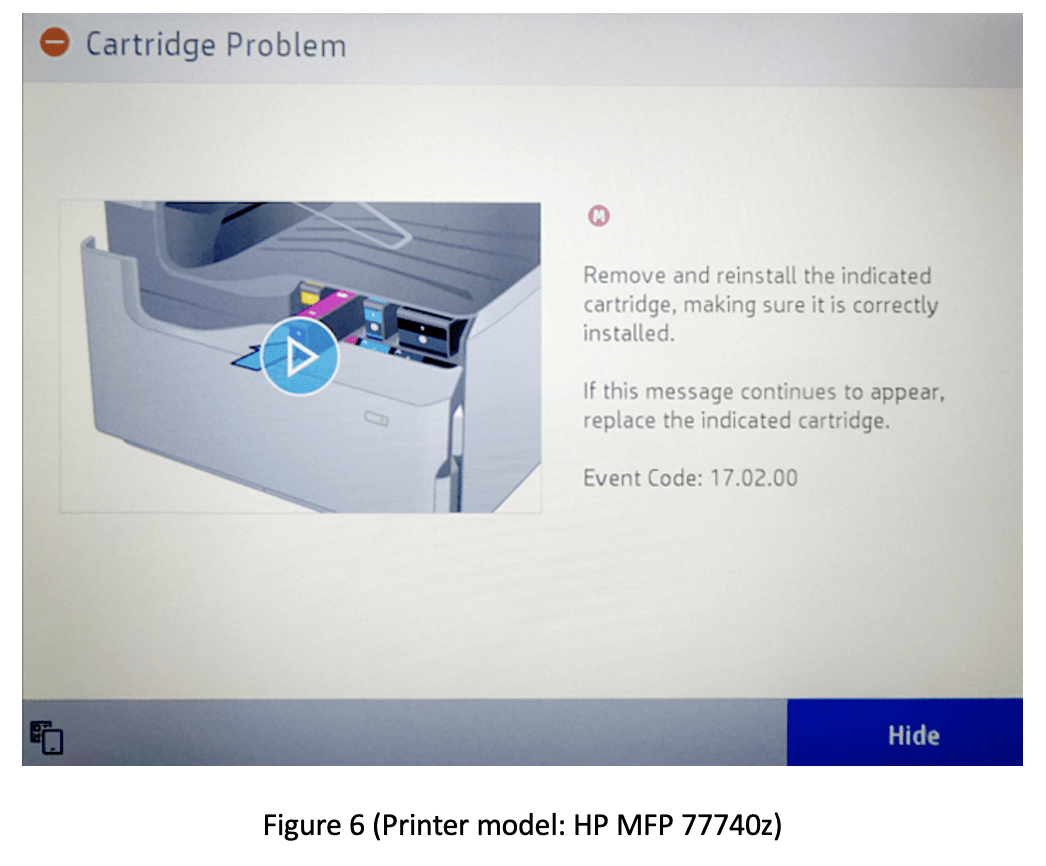

Or “Cartridge Problem. Remove and reinstall the indicated cartridge, making sure it is correctly installed. If this message continues to appear, replace the indicated cartridge. Event Code: 17.02.00” (Figure 6).



Solution

Check to see if the chip matches the cartridge corresponding to the correct color. We recommend opening and closing the front cover or turning on and off the power twice. If the prompt still appears, replace the chips with new chips.



Prompt Message: Supply System Problem

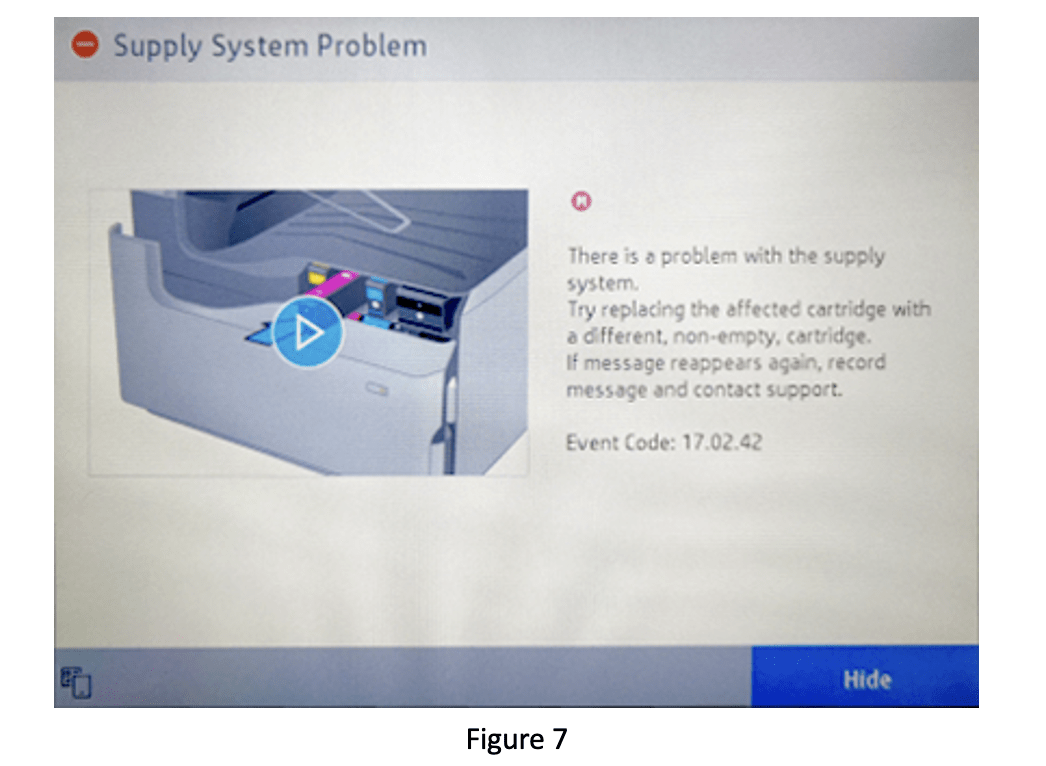

Prompt Text: “There is a problem with the supply system. Try replacing the affected cartridge with a different, non-empty, cartridge. If message reappears again, record message and contact support. Event Code: 17.02.42” (Figure 7).



Solution

1. Check to see if the cartridge is empty.
2. Check to see if the ink supply system operates correctly.
3. Check to see if the print head is clogged.

Zhono notes: If there is ink inside the cartridge, please replace the chip with a new chip. If “Printer maintenance is in process. Do not interrupt.”display is on the screen and the printer makes the sound of ink supplying, this indicates that the printer is working correctly. If not, please replace the chip with a new one, and repeat the processes mentioned above. If the message “Supply System Problem” reappears, Zhono recommends to contact your sales representative or a service centre.
